Description

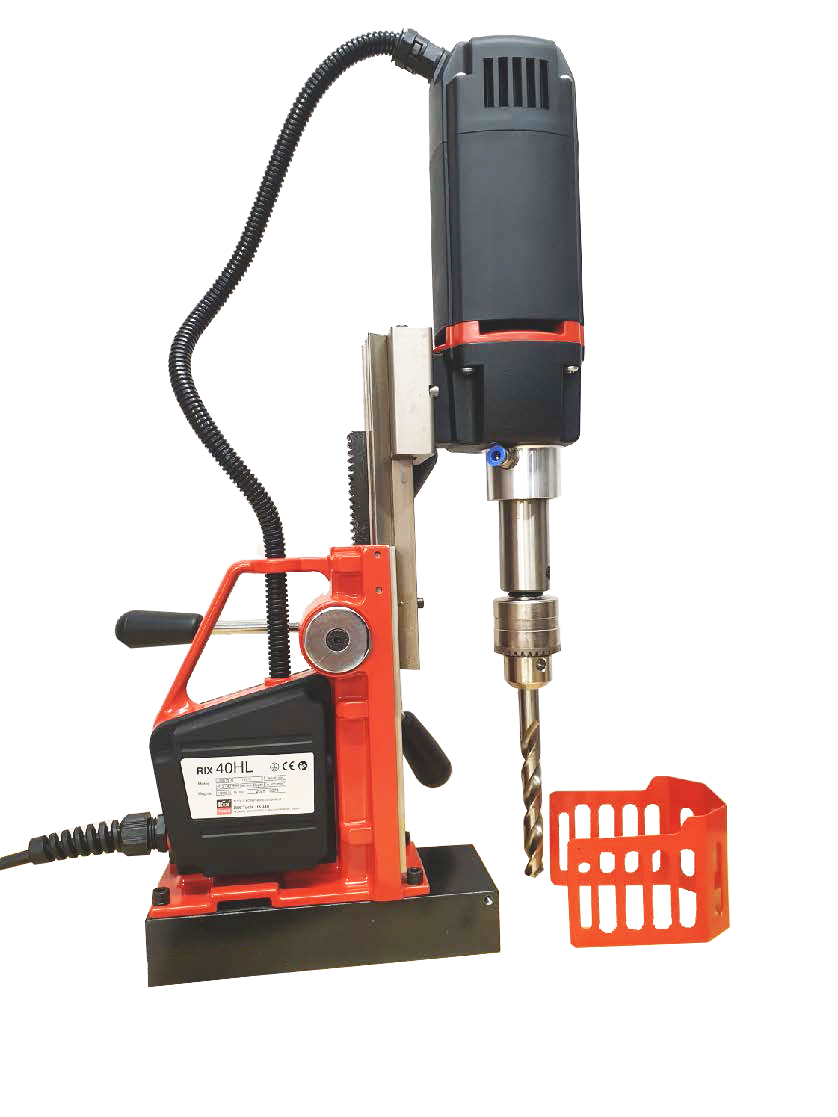

RIX40HL high lift magnetic drill. Capable of drilling up to 40.00 mm Ø with both long & short series annular core cutter (broach cutters).
The high lift system allows a further 100mm of stroke compared to the standard, ideal for working on thicker beams or areas where you need the additional stroke length. The additional lift means you can add a standard drill chuck for smaller holes.
Features
- High Lift (Extended Stroke)
- Capacity: Ø 12 – 40mm
- Cutting Depth: 50mm
- Weldon Shank : 13mm
- Speed: 400RPM
- Stroke: 110 + 100mm
- Magnet Size: 80 x 200mm
- Weight: 10kgs
Supplied with:
- Transport Case
- Safety Strap
- Coolant Tank and Hose
- Safety Guard
- User Guide
| Specification | Unit | RIX35 | RIX40LP | RIX40HL |
|---|---|---|---|---|
| Magnet Strength | N | 9,000 | 11,000 | 11,000 |
| Motor | Watts | 1,050 | 1,300 | 1,020 |
| Power Options | V | 110 / 240 | 110 / 240 | 110 / 240 |
| Speed (No Load) | rpm | 400 | 450 | 400 |
| Twist Drill Capacity | mm | 12 | 12 | 13 |
| Cutter Capacity | mm | Ø 12 – 35 | Ø 12 – 40 | Ø 12 – 40 |
| Cutter Depth | mm | 50 | 30 | 50 |
| Arbour Mount | mm | 19mm Weldon | 19mm Weldon | 13mm Weldon |
| Stroke | mm | 117 | 46 | 110 + 100 |
| Magnet Footprint | mm | 80 x 160 | 100 x 378 | 80 x 200 |
| Weight | kg | 9.5 | 13.2 | 10 |
